Product description

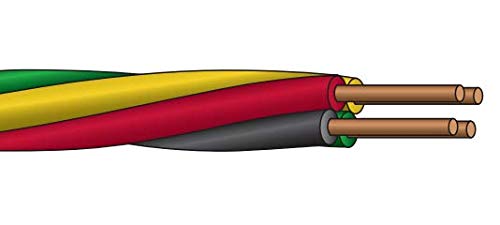

Nassau 10/3 With Ground Twisted Submersible Well Pump Cable 600V
Applications
The submersible pump cable is a special type of electrical cable that is uniquely designed for use with submersible pumps. It can perform very well in light to medium power supply applications since it is rated at 600 volts. The twisted copper submersible power cable can operate in a wide range of temperatures of up to 75 C. The cable is typically used within the well casing in order to supply power to the submersible pump. The voltage rating of the electrical cable is 600 volts. Images are for reference only See Product Specifications Please order carefully no returns are accepted.
Conductor
The conductors are made of solid or stranded soft annealed copper. Annealing enhances the flexibility of the conductor, which makes it easy to install and transport. The conductors are resistant to oil and grease.
Insulation:

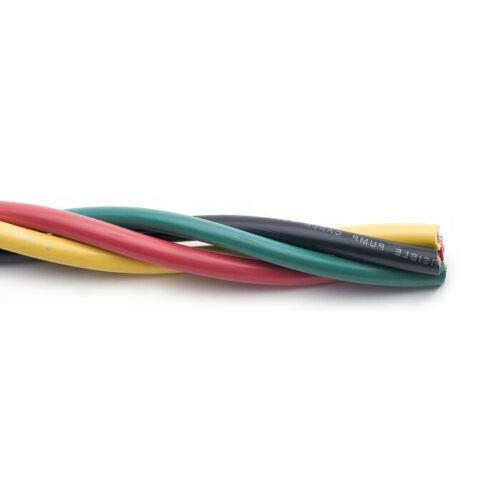

Each individual conductor is insulated with a thermoplastic PVC insulation. It is color-coded to allow easy identification of the cable. The colors used include black, red, yellow, and green for grounding. The insulation is durable and resistant to abrasion and mechanical impact. The cable has no jacket.
Allowable Ampacity
Allowable Ampacity For 10/3 Solid Thw/Submersible Pump Cable Twisted Copper 600v: 30 Amps
2/3 Heavy Duty Flat Jacketed Submersible Cable
|
4/3 WG Flat Submersible Pump Cable
|
6/3 Heavy Duty Flat Jacketed Submersible Cable
|
10/2 With Ground Twisted Submersible Cable
|
10/3 With Ground Twisted Submersible Cable
|
12/3 With Ground Twisted Submersible Cable
|
|
|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
| Customer Reviews |
— |
4
|
1
|
3
|
3
|
8
|
| Gauge | 2 | 4 | 6 | 10 | 10 | 12 |
| No. Conductors | 3 | 3 | 3 | 2 | 3 | 3 |
| Ground Size | 6 | 8 | 8 | 10 | 10 | 12 |
| O.D. Inches | 535 x 1.749 | 465 x 1.489 | 414 x 1.336 | 0.43 | 0.48 | 0.481 |
| New Weight lb/1000FT | 1036 lbs | 714 lbs | 522 lbs | 135 lbs | 180 lbs | 135 lbs |
| AMPS | 115 | 85 | 50 | 30 | 20 | 15 |
| Volts | 600V | 600V | 600V | 600V | 600V | 600V |
