Netgate 1100 pfSense+ Security Gateway - Firewall, Router, VPN
Netgate 1100 pfSense+ Security Gateway - Firewall, Router, VPN
Made with care
Great value
Elegant design
Quality materials
Details
This product is crafted with quality materials to ensure durability and performance. Designed with your convenience in mind, it seamlessly fits into your everyday life.
Shipping & Returns
We strive to process and ship all orders in a timely manner, working diligently to ensure that your items are on their way to you as soon as possible.
We are committed to ensuring a positive shopping experience for all our customers. If for any reason you wish to return an item, we invite you to reach out to our team for assistance, and we will evaluate every return request with care and consideration.
Product description
Netgate Security Gateway Appliances with pfSense Plus Software
World’s Most Trusted Firewall
Millions of pfSense Plus installations protect organizations worldwide.
Complete Solution
All Netgate appliances come pre-installed with the latest pfSense Plus software with lifetime upgrades and TAC Lite assistance included.
Unbeatable Value
Get business-grade security at a fraction of the cost of comparable solutions.
Scalable Performance
Find the perfect appliance for your needs, with options ranging from compact home solutions to multi-gigabit business deployments.
Netgate Technical Assistance Center
Every Netgate appliance includes one year of complimentary TAC Lite technical assistance from Netgate's award-winning Global Technical Assistance team. Our "zero-to-ping" service helps ensure you can successfully connect your Netgate appliance to the internet and one client on the same network online. With a 98% satisfaction rating and technical professionals available 24/7/365, you can trust that expert help is there when you need it.

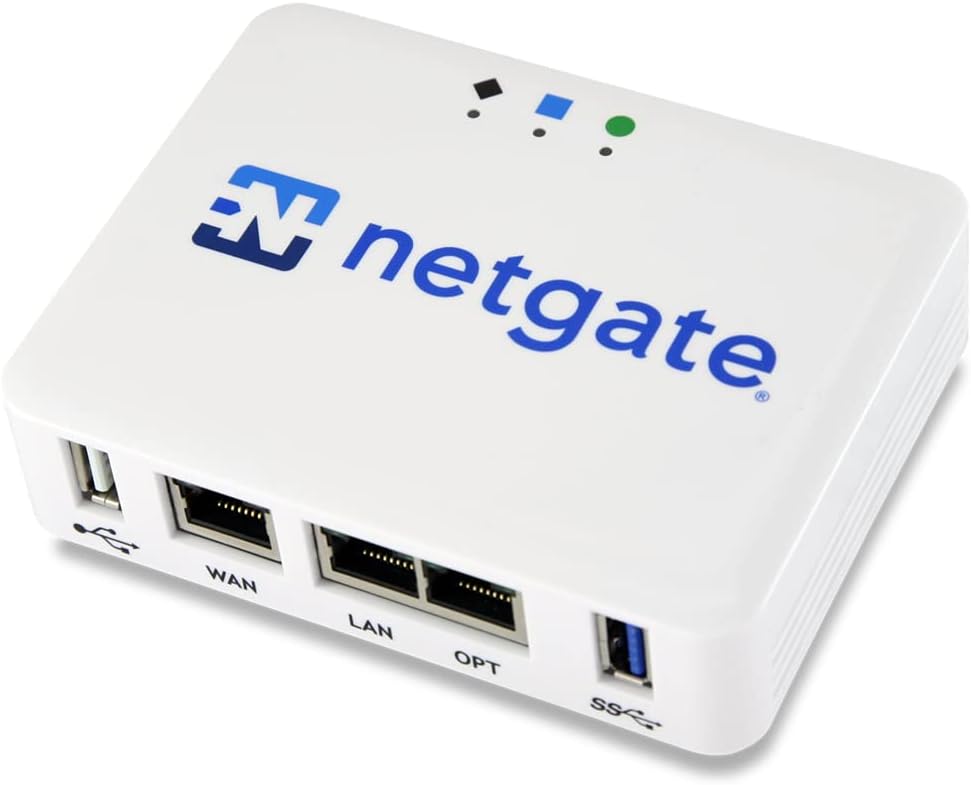

Netgate 1100
pfSense is the world’s most popular, feature-rich and robust firewall, router and VPN solution. Ideal for professionals and organizations looking for easy-to-use, powerful, flexible, proven solutions for safely connecting to the Internet.

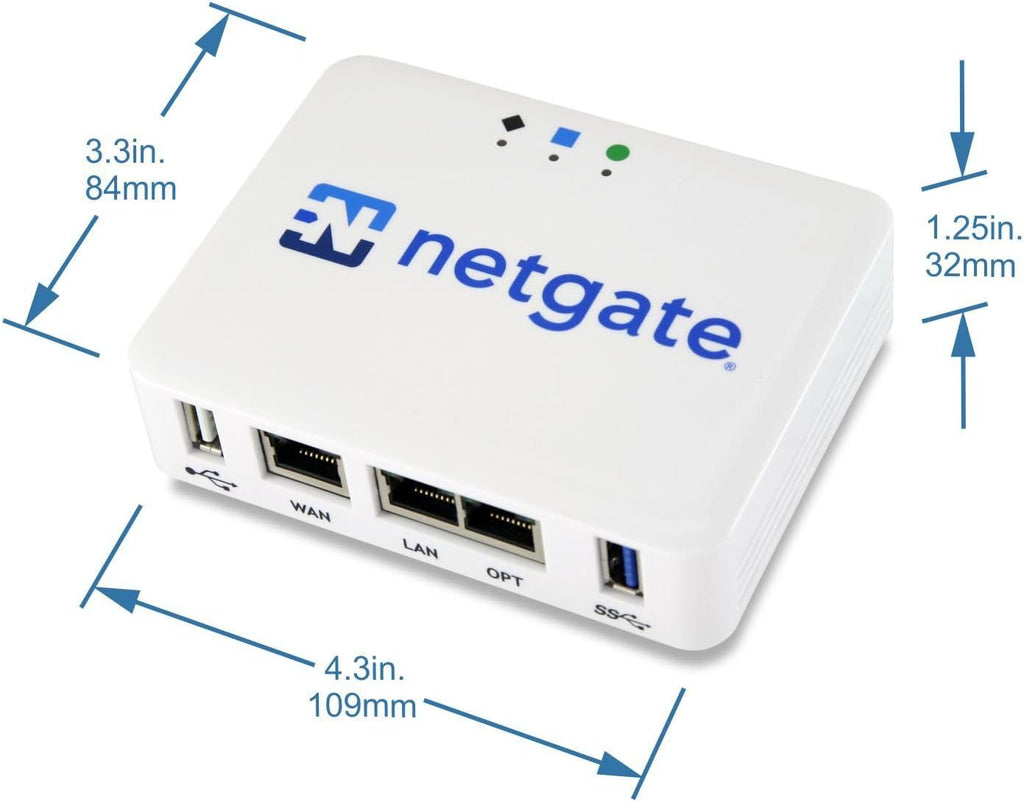

The Netgate 1100 security gateway appliance with pfSense Plus software is the ideal microdevice for the home and small office network. With a compact form factor, low power draw, and silent operation it can run completely unnoticed on a desktop or wall. Featuring a Dual-core ARM Cortex-A53 1.2 GHz CPU, (3) 1 GbE ports, and 1 GB of DDR4 RAM, the Netgate 1100 enables up to 880 Mbps routing and 650 Mbps of firewall throughput.

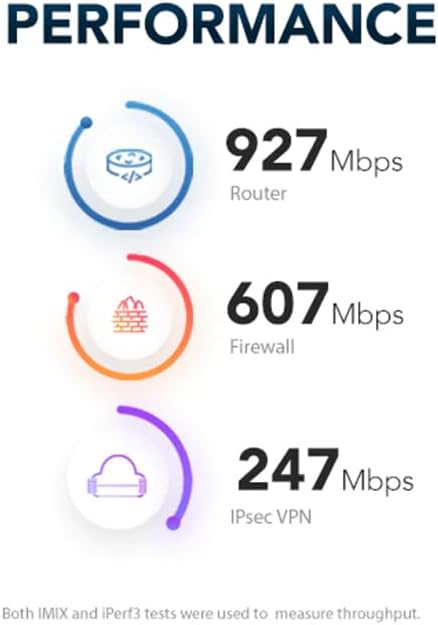

Performance
The Netgate 1100 delivers a substantial improvement in pfSense Plus firewall performance relative to its highly popular predecessor, the SG-1000. Consumer and business customers will quickly appreciate this product packs a serious punch with pfSense Plus software, world-class price-performance, elegant packaging, and an unbeatable low price.
L3 Forwarding
- IPERF3 Traffic: 927 Mbps
- IMIX Traffic: 472 Mbps
Firewall (10k ACLs)
- IPERF3 Traffic: 607 Mbps
- IMIX Traffic: 191 Mbps
IPsec VPN (AES-CBC-128 + SHA1)
- IPERF3 Traffic: 247 Mbps
- IMIX Traffic: 90 Mbps
Specifications
CPU: Underpinned by the powerful, yet energy-efficient, 64-bit Marvell ARMADA 3720 network processing system-on-chip (SoC), which fully leverages Dual Cortex-A53 ARM processor cores.

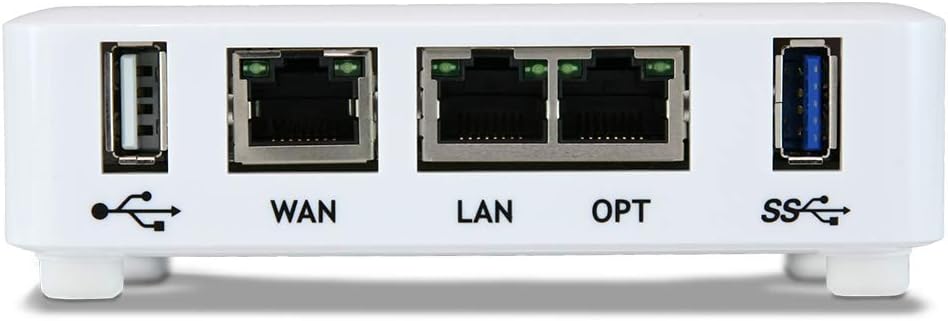

Network Ports: Marvell 88E6141 networking switch which drives (3) GbE Ethernet (WAN/LAN/OPT) ports
Storage: 10.6 GB eMMC storage.
Memory: 1 GB DDR4 RAM, DDR4 memory allows more stable, higher transfer rates for memory-intensive applications (e.g. IDS/IPS).
Cooling: The passive cooling system and low power draw of the Netgate 1100 provides efficient thermal management and silent operation expected from smaller devices despite its significantly higher performance.
Netgate 1100 w/ pfSense Plus Software Security Gateway
|
Netgate 2100 w/ pfSense Plus Software Security Gateway
|
Netgate 4200 MAX pfSense+ Security Gateway | Firewall, Router, VPN | Lifetime...
|
Netgate 6100 pfSense+ Security Gateway | Router, Firewall, VPN | Lifetime TAC...
|
|
|---|---|---|---|---|
|
|
|
|||
| Customer Reviews |
383
|
149
|
46
|
28
|
| Price | $299.00 | — no data | $829.00 | — no data |
| CPU | Dual Core Cortex-A53 ARM64 SoC @ 1.2GHz | Dual Core Cortex-A53 ARM64 SoC @ 1.2GHz | Quad Core Intel Atom C1110 with AVX2, 2.1 GHz | Quad Core Intel Atom C3558 2.2 GHz |
| Storage | 10.6 GB eMMC | 128 GB M.2 SATA 2242 SSD MAX/10.6 GB eMMC BASE | 128 GB NVMe M.2 SSD | 128 GB NVMe M.2 SSD MAX/21.3 GB eMMC |
| Memory | 1 GB DDR4 | 4 GB DDR4 | 4 GB LPDDR5 | 8 GB DDR4 |
| Ports | (3) 1 GbE ports (WAN/LAN/OPT) which share a 1 GbE Marvell switch | (1) 1 GbE (RJ45/SFP combo) (4) 1 Gbps LAN Marvell switch with 2.5 Gbps uplink | (4) 2.5 GbE (RJ45) "Direct" (unswitched) combo WAN/LAN Intel i226 | (2) 1 GbE Combo Ports (RJ45/SFP) Intel SoC Integrated MAC; (2) 10 GbE SFP+; (4) 2.5 GbE Intel i225 |
| L3 Forwarding | 880 Mbps | 1.56 Gbps | 9.28 Gbps | 18.76 Gbps |
| Firewall (10k ACLs) | 656 Mbps | 881 Mbps | 8.61 Gbps | 10.07 Gbps |
| IPsec VPN | 74.2 Mbps | 118 Mbps | 3.2 Gbps | 1.77 Gbps |
| IPsec encryption standard used | AES-CBC-128 + SHA1 | AES-GCM-128 / AES-NI | AES-GCM-128 w/VAES | AES-GCM-128 w/QAT |
