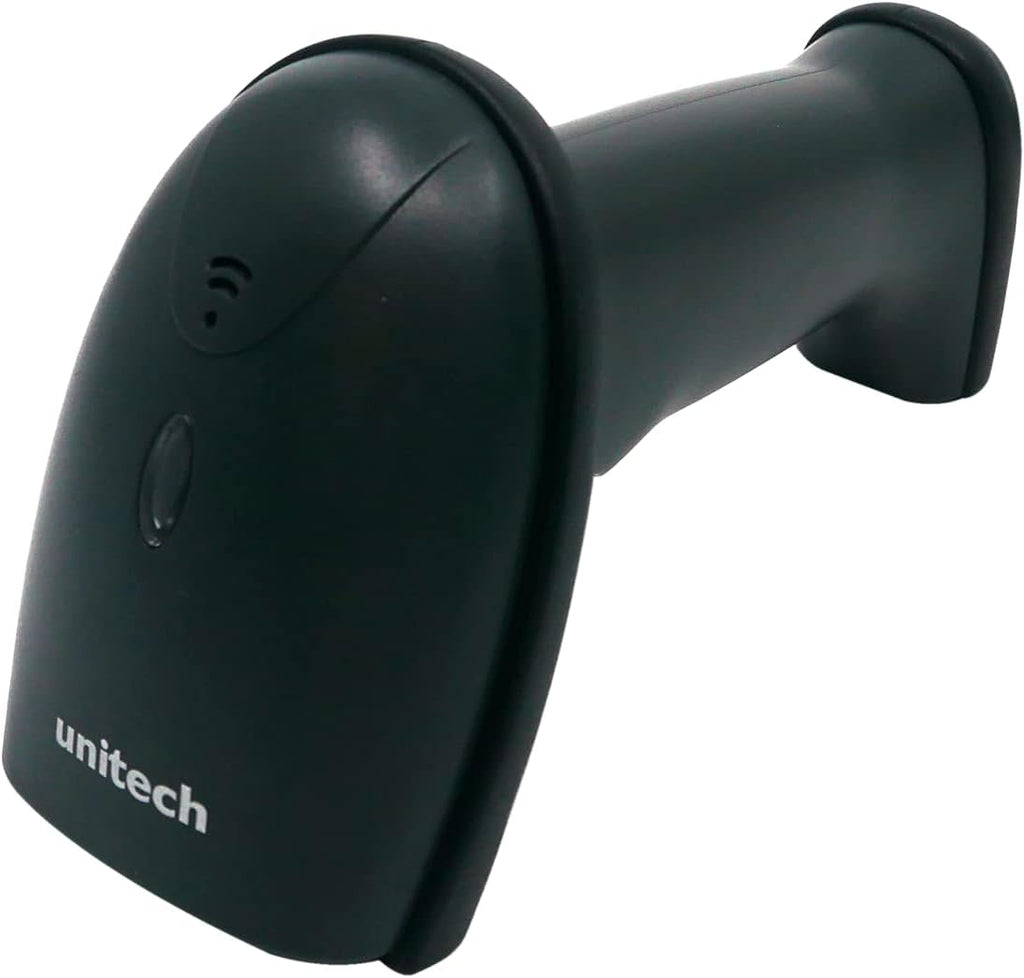

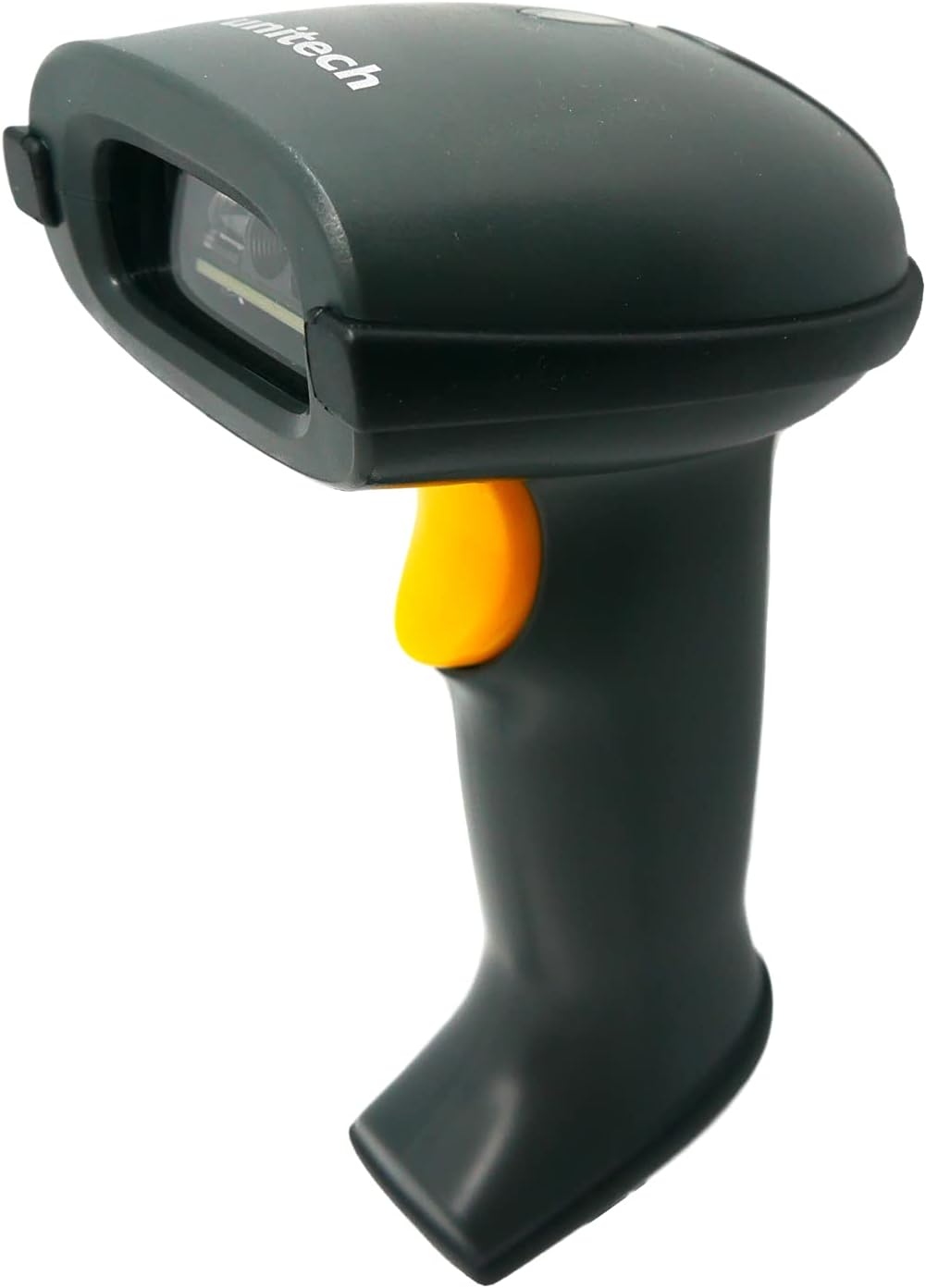

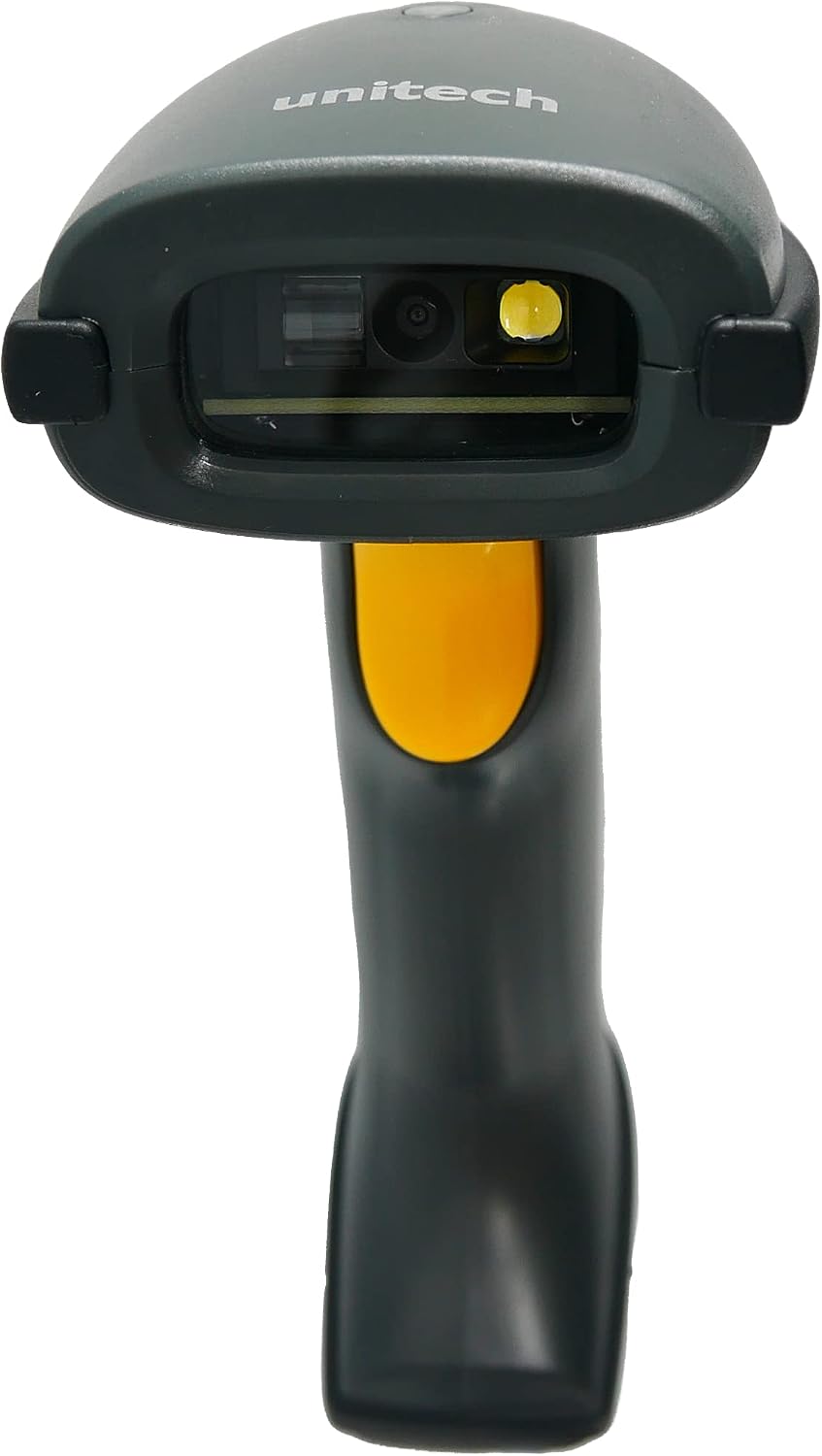

Name: UNITECH America 2D Imager Barcode Scanner, USB Cable, Plug and Play, Gooseneck Stand/Cradle, Black, Read 3mil barcodes, PDF417, QR Code, Data Matrix, Aztec Code, IP54, 1.5M Drop, MS838-2UCB0S-SG
Brand: My Store
Price: 48.73 USD
Availability: InStock

UNITECH America 2D Imager Barcode Scanner, USB Cable, Plug and Play, Gooseneck Stand/Cradle, Black, Read 3mil barcodes, PDF417, QR Code, Data Matrix, Aztec Code, IP54, 1.5M Drop, MS838-2UCB0S-SG

$48.73

Shipping calculated at checkout.

Made with care

Great value

Elegant design

Quality materials

This product is crafted with quality materials to ensure durability and performance. Designed with your convenience in mind, it seamlessly fits into your everyday life.

We strive to process and ship all orders in a timely manner, working diligently to ensure that your items are on their way to you as soon as possible.

We are committed to ensuring a positive shopping experience for all our customers. If for any reason you wish to return an item, we invite you to reach out to our team for assistance, and we will evaluate every return request with care and consideration.

From the manufacturer

Unitech has been deeply involved in the "Auto Data Capture" field for more than 37 years. We have rich industrial experience and sell our products with the brand "unitech" all over the world. We have established subsidiaries in the United States, the Netherlands, China, and Japan, and have 14 offices and 1200 distributors worldwide to serve our customers. Rugged PDAs, barcode scanners, and RFID readers are our main products. The three main product lines provide value-added software to endow products with multiple intelligent functions. It provides industrial integration applications in various fields such as retail, logistics, warehousing, manufacturing, medical, chemical, service industry as well as government agencies.

MS838 2D Imager Barcode Scanner Specifications

Fast reading on all 1D/2D barcode on paper and screen.
Quick decoding 3mil barcode even damaged or poorly printed barcodes.
Withstanding multiple drops to concrete 1.5 meters and IP42.
Supports trigger mode & presentation mode.
Trigger Switch Life: 1 million times.
1D Barcodes: Code 128, EAN-13, EAN-8, Code 39, Code 32, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, Code 93, GS1-128, GS1 Databar, GS1 Databar Limited, GS1 Databar Expanded, Matrix 2 of 5, Code 11, Industrial 2 of 5, Matrix 2 of 5,
2D Barcodes: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec Code

	MS250-CUCB00-DG	MS340-CUCB00-SG	MS836-SUCB00-SG	MS838-2UCB00-SG	AS10-U

Customer Reviews	23	2	—	—	45
Price	$47.62	— no data	$48.88	$65.80	$34.49
Recommended Area:	Mid-range CCD scanner. For retail stores, libraries, and pharmacies	Long range CCD scanner. Read large cardboard barcodes from warehouses, etc.	1D laser scanner. Barcodes are placed closely and readable for thin red lines	2D barcode scanner. Read QR code, read the barcode on the LCD screen	CCD scanner. For retail stores, libraries, and pharmacies
Read sensor	1D Linear CCD	1D Linear CCD	1D laser CMOS Image Sensor	2D 640 x 480 CMOS	1D Linear CCD
Lighting	Visible Red LED 635nm	Visible Red LED 635nm	Visible Red Laser Diode 650nm	White LED	Visible Red LED 635nm
Scan Speed	200 scans/second	500 scans/second	100 scans/second	60 fps	100 scans/second
Reading distance	Max 3.5 in (90mm)	40mm - 400mm	12 - 254mm	60mm - 360mm	Max 3.5 in (90mm)
Interface	USB interface	USB interface	USB interface	USB interface	USB interface
Barcodes	Most 1D barcodes	Most 1D barcodes	Most 1D barcodes	2D and 1D including QR code	Most 1D barcodes
Dimensions	6.4 in. x 3.1 in. x 2.5 in	2.83in x 2.77inx 6.46in	3.7 in. x 2.7 in. x 6.2 in.	6.8in x 2.8in x 3.7in	7 in x 3 in x 2.4 in
Weight	2.9oz	6.12oz	8.6oz	8.6oz	4.2oz

Product Description

Sensor: 640 X 480 CMOS

Aiming Element: Red LED

Illumination: White LED

Ambient Light: 0~100,000lux (natural light)

Scan Rate: 60fps

Skew Angle: ±60°

Pitch Angle Sensor: ±60°

Roll Angle: 0 - 360°

Optical Resolution: (1D)≥3mil

Depth of Field: 60-360mm (13 mil PCS=90%)

Host Interface supported: USB / RS232

Operation Mode: Trigger Mode, Presentation Mode

1D Barcodes: Code 128, EAN-13, EAN-8, Code 39, Code 32, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, Code 93, GS1-128, GS1 Databar, GS1 Databar Limited, GS1 Databar Expanded, Matrix 2 of 5, Code 11, Industrial 2 of 5, Matrix 2 of 5,

2D Barcodes: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec Code

Data Formatting: Prefix, Suffix, Code ID, Reformatting Date

Current Consumption: Operation mode: <142mA, Standby mode: <42mA

Mechanical Shock: 1.5m onto concrete

IP Rating: IP54

Regulatory Approvals: CE, FCC, BSMI, VCCI

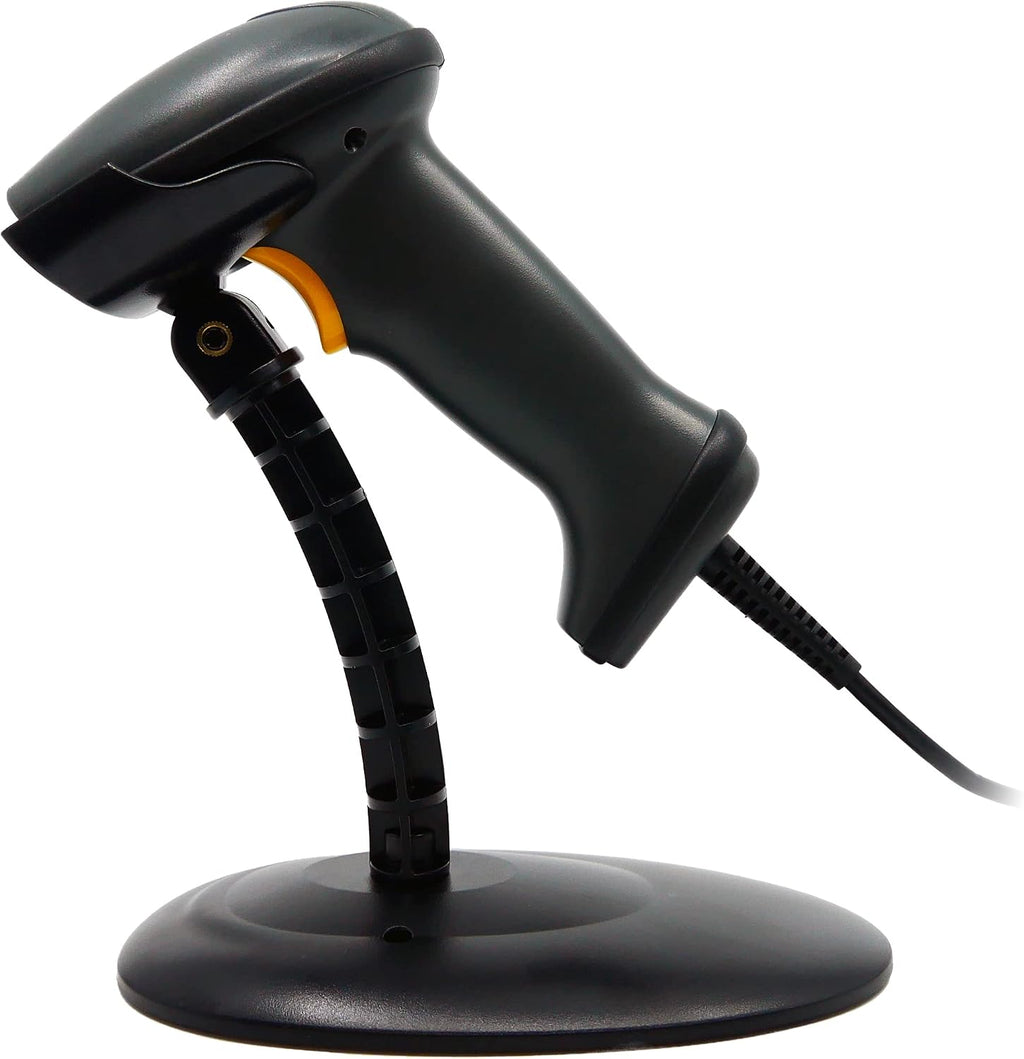

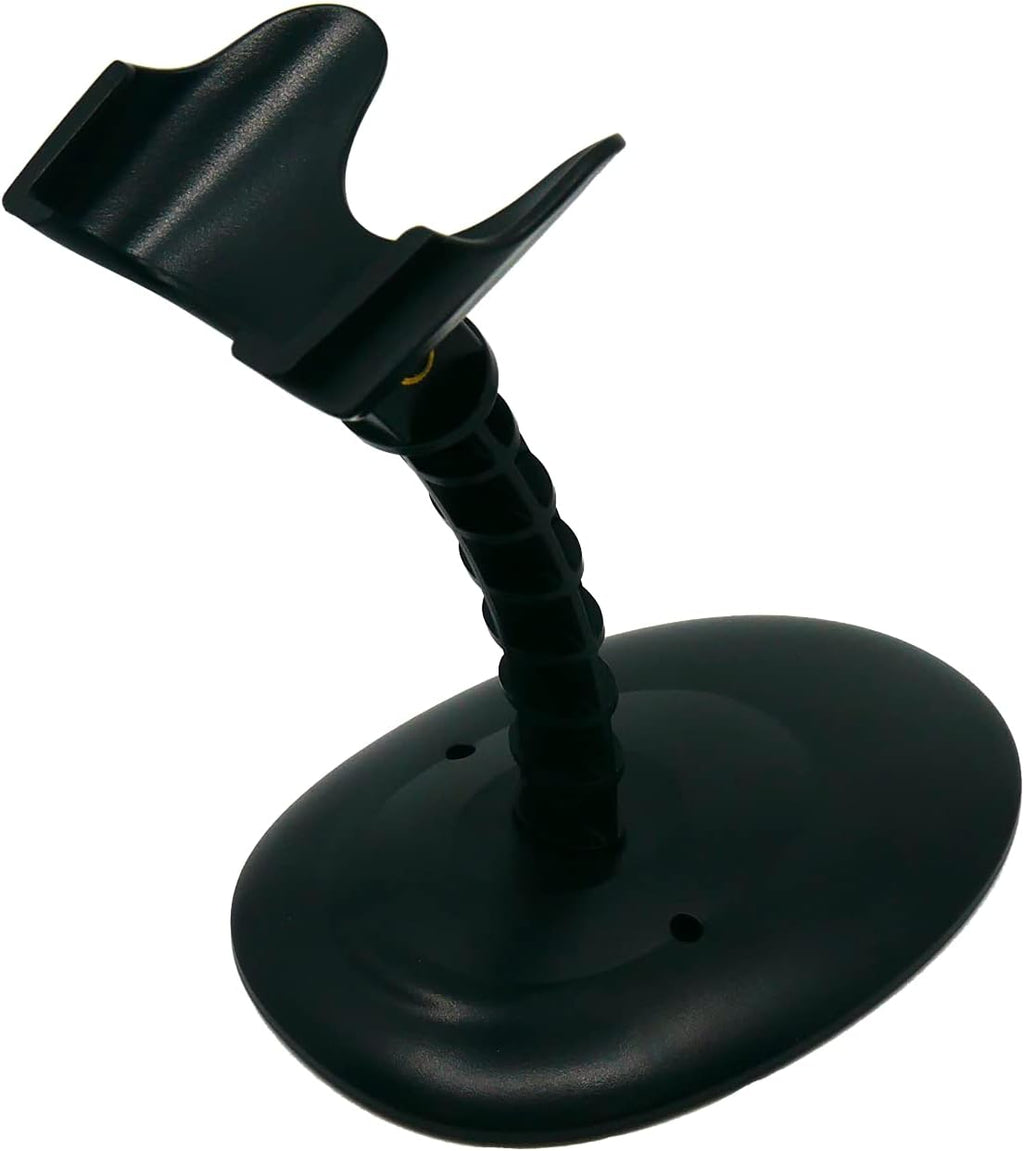

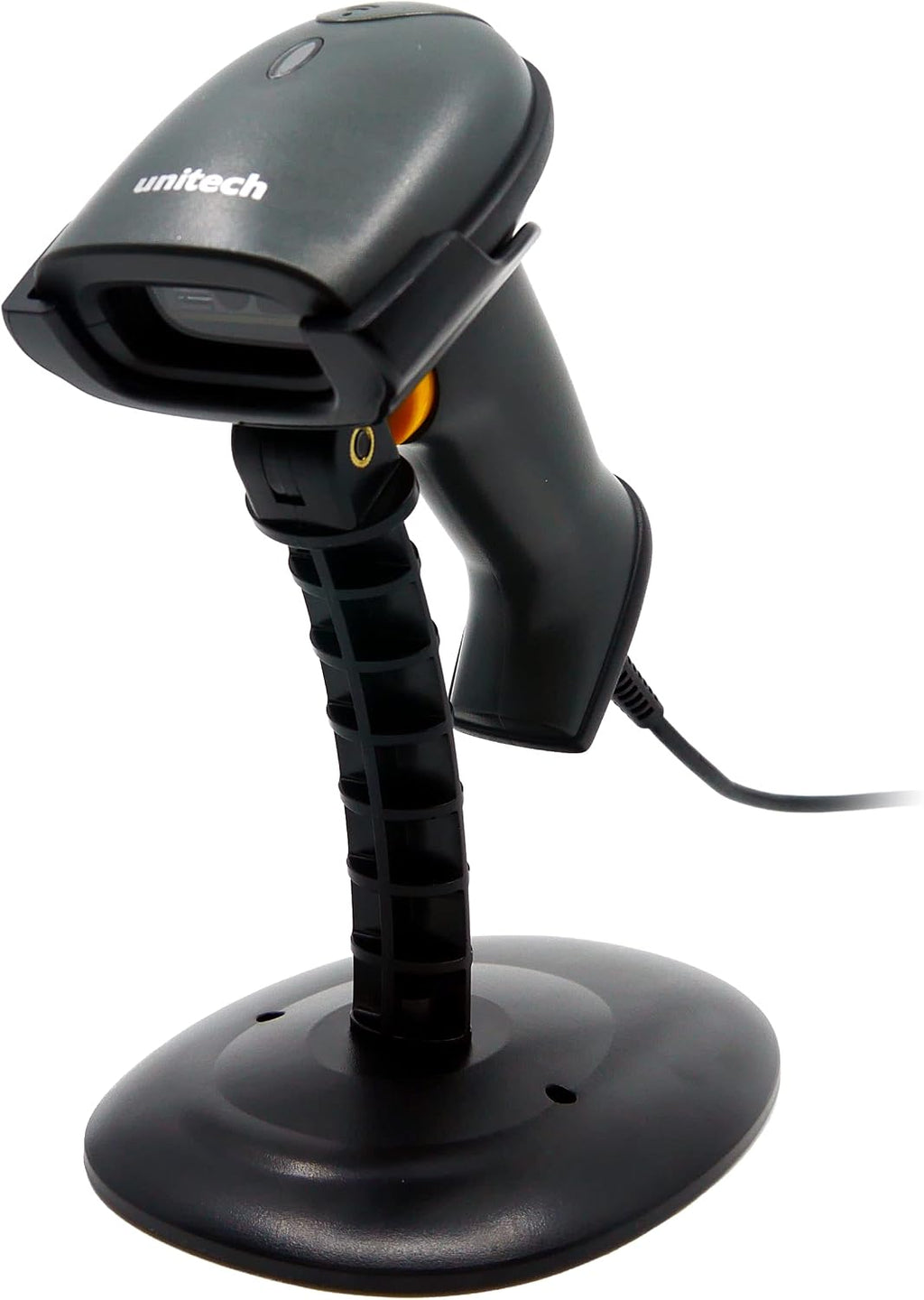

The standard package contents: MS838 Scanner; Interface cable; Hands-Free Stand
